EMP Fiber Laser Metal Tube Cutters
EMP tube laser cutting machines are rigorously tested, vetted, and selected for unmatched precision, efficiency, and economical operation. Our CNC-operated fiber tube lasers cut steel, stainless, aluminum tubing, and more — delivering clean, accurate results for every application.
| Model |

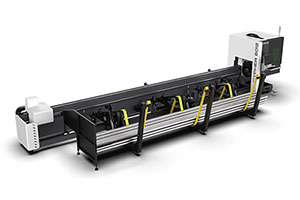

Cypher |

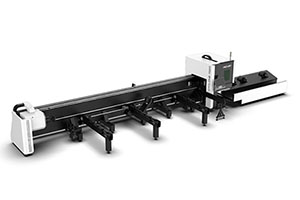

Cyclone |

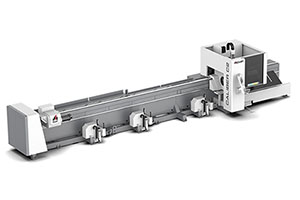

Caliber C2 |

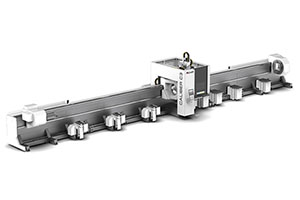

Caliber C3・C4 |
|---|---|---|---|---|
|
Type |
High-Speed Fiber Laser Tube Cutter |
High-Speed Heavy Duty Fiber Laser Tube Cutter |
2-Chuck Heavy Duty Fiber Laser Tube Cutter |
3-Chuck or 4-Chuck Heavy Duty Fiber Laser Tube Cutter |
|
Laser Power (W) |
1.5kW, 3kW |
1.5kW, 3kW, 6kW, 12kW |
6kW, 12kW, 20kW, 30kW |
6kW, 12kW, 20kW, 30kW, 60kW |
|
Tube Capacity |
21.32' maximum tube length |
24.6' maximum tube length |
Configurable for 22' to 40' maximum tube lengths |
Configurable for 20' to 50' maximum tube lengths |
|
Min Round Tube Diameter |
0.4” (10mm) |
0.6” (15mm) |
0.98" (25 mm) on the 6026; 1.18" (30 mm) on the 6036 |
1.2” (30mm) |
|
Max Round Tube Diameter |
4.72” (120mm) |
9” (230mm) |
9.8" (250 mm) on the 6026; 13.78" (350 mm) on the 6036 |
13.8” (350mm) |
|
Options |
Unloading System, Semi-Automatic and Fully Automatic Feeding Options |
Unloading System, Semi-Automatic and Fully Automatic Feeding Options |
Bevel Laser Head, Flow Drilling/Tapping, Semi-Automatic Loading/Unloading |
Bevel Laser Head, Flow Drilling/Tapping, Semi-Automatic Loading/Unloading |
|
Best For |
Optimized for high-volume runs of small-diameter tubing. Perfect for first-time users or as a supplementary machine. Handles up to Ø120mm, maintaining tight tolerances even at top speeds of 200 rpm. Minimum tailing length of 1.18” (30mm). |
Built for heavy-duty pipe and profile processing. Delivers industrial-grade reliability and productivity for all types of manufacturing industries. Handles round tubes up to Ø230mm and square tubes up to 230mm with exceptional speed and accuracy. Minimum tailing length of 2.75” (70mm). |
Side-mounted fiber tube laser cutters engineered for heavy-duty performance, stability, and safety. Can handle a wide range of tubes and profiles including square, round, rectangular, angle iron, H steel, and more. |
Side-mounted fiber tube laser cutters engineered for heavy-duty performance, stability, and safety. Both C3 and C4 models handle a wide range of tubes and profiles including square, round, rectangular, angle iron, H steel, and more. |
|
Starting At |
$123,950 |
$148,950 |
$298,950 |
$368,950 |
|
Learn More |
